Timeline of Emission Control Technologies

Over the last 30 years, each tightening of U.S. heavy-duty emission standards prompted new hardware on diesel trucks:

  • 1991–1994 (PM controls): EPA cut the allowable particulate matter (soot) from 0.25 to 0.10 g/bhp·hr. To meet these tighter PM limits, manufacturers improved Diesel Oxidation Catalysts (DOCs) (which oxidize hydrocarbons and the organic fraction of soot) and began developing particulate traps. In practice this meant adding heavy-duty catalytic converters and early soot-trapping devices.
  • 2004 (NOx and HC targets): EPA set a combined NOx+HC cap of ~2.5 g/bhp·hr for 2004 and kept PM at 0.10. To achieve the low NOx without excessive fuel penalty, most makers adopted cooled high-pressure EGR, recirculating a portion of exhaust back to the intake to lower peak combustion temperatures. DOCs continued to oxidize HC/CO and raise exhaust NO₂ levels (assisting later regeneration). Overall, 2004 trucks typically used EGR plus improved injection timing and catalysis to comply.
  • 2007–2010 (Ultra-Low Sulfur Diesel and DPF/SCR): The 2007 EPA rule mandated ultra-low sulfur diesel (ULSD) at 15 ppm, enabling sulfur-sensitive aftertreatment. PM limits fell to 0.01 g/bhp·hr by 2007, effectively forcing Diesel Particulate Filters (DPFs) on all heavy diesels. These ceramic filters trap >90% of soot and periodically burn it off (regeneration). NOx limits tightened in stages through 2010 to 0.20 g/bhp·hr. Meeting that requires Selective Catalytic Reduction (SCR): injecting urea-based Diesel Exhaust Fluid (DEF) to convert NOx to N₂/H₂O. Manufacturers could also use very advanced EGR or NOx adsorbers, but nearly all heavy trucks adopted DEF-SCR by 2010.
  • 2027 and Beyond (Low-NOx): EPA (Tier 3) and California (Omnibus) rules aim for ~90% lower NOx than 2010 – on the order of 0.02–0.035 g/bhp·hr. These future standards will push even finer aftertreatment and engine controls (e.g. more precise EGR, larger SCR, advanced catalyst chemistries). California’s 2027 mandate of 0.02 g/bhp·hr is an example of these ultra-low NOx rules.

Each step in this timeline brought a specific technology into common use: DOCs and soot traps in the 1990s, EGR by the mid-2000s, and DPF + SCR by 2010. As a result, modern diesels emit over 90% fewer particulates and NOx than trucks of the 1980s.

Components of a Modern Diesel Exhaust System

In a typical post-2008 diesel truck, exhaust flow follows this sequence:

Exhaust Manifold → Turbocharger → DOC → DPF → SCR → Muffler → Exhaust Tip

Alongside this main path, additional systems like Exhaust Gas Recirculation (EGR) and Closed Crankcase Ventilation (CCV) loop gases in parallel, and various sensors monitor emissions. The components work as follows:

The system begins at the exhaust manifold, which collects hot gases from each cylinder. On V8 engines (e.g. Ford Power Stroke) separate “banks” of cylinders feed into each manifold.

The section of piping that carries exhaust from the manifold into the turbocharger is known as the up-pipe; its job is to channel exhaust gases smoothly into the turbo’s turbine inlet.

The manifold directs exhaust into the turbocharger, where exhaust spins a turbine linked to a compressor for the intake air. This boosts engine power and also helps exhaust flow.

Immediately downstream of the turbo is the downpipe: the pipe connecting the turbo outlet to the aftertreatment. On many trucks, the pipe exiting the turbo and heading down under the frame is called the downpipe. Clamps and flanges join these sections, allowing components to be swapped.

Next is the Diesel Oxidation Catalyst (DOC). This is a metal honeycomb coated in precious metals (e.g. platinum). The DOC’s job is to oxidize (burn) carbon monoxide (CO) and unburned hydrocarbons (HC) using the abundant oxygen in diesel exhaust. It also oxidizes part of the organic fraction of soot and notably converts NO to NO₂. Increasing NO₂ content is deliberately useful: it helps burn soot in the DPF and makes SCR more effective. In short, the DOC cleans up smog gases and “primes” the exhaust for the next stages.

After the DOC, the gas enters the Diesel Particulate Filter (DPF). This ceramic filter traps solid soot particles from the exhaust. Under normal operation, the filter fills with soot; an active regen event then heats the DPF (sometimes aided by added fuel into the exhaust) to oxidize and burn out the accumulated carbon. This regeneration is critical, since a full DPF can clog. Modern DPFs (often combined with the DOC in one housing) remove roughly 90% or more of the particulate matter.

Following the DPF is the Selective Catalytic Reduction (SCR) unit. This stage targets NOx. A dosing module injects a fine mist of Diesel Exhaust Fluid (DEF), a urea-water solution, into the hot exhaust. Inside a special catalyst, the urea thermally breaks down to ammonia (NH₃). The ammonia then reacts with NOₓ over the catalyst surfaces to yield nitrogen (N₂) and water (H₂O). This reaction typically achieves near-complete reduction of exhaust NOx.

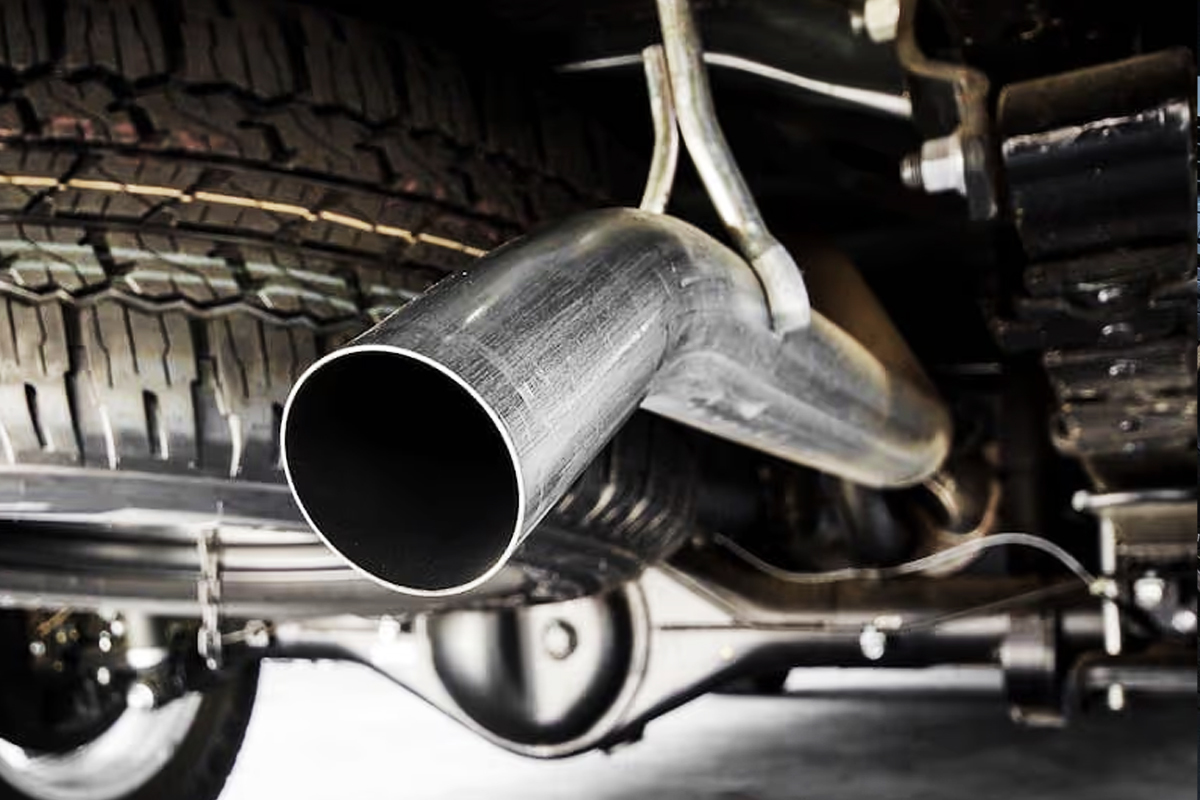

Finally, the cleaned exhaust passes through the muffler, which uses internal chambers and packing to attenuate sound, and out the tailpipe. The exhaust tip is simply the visible end of the pipe (often styled or angled).

Throughout this flow, parallel systems also operate:

  • EGR (Exhaust Gas Recirculation): A valve taps some cooled exhaust gas from before the turbo (or from the manifold) and feeds it back into the intake. By diluting the intake charge with inert exhaust, EGR lowers peak combustion temperature and thus reduces NOx formation in-cylinder.
  • CCV (Closed Crankcase Ventilation): Diesel engines produce “blow-by” gases (air, unburned fuel, and oil mist) that leak past the piston rings into the crankcase. A CCV system filters that oil mist and routes the remaining blow-by gas back into the intake (or into the exhaust path) instead of venting it to atmosphere. This is important because crankcase blowby can be a significant source of PM and unburned hydrocarbons. Modern CCV filters capture oil so only cleaner gas enters the exhaust, making the system “closed” instead of an open vent.

Several sensors are mounted along the exhaust to manage all this:

  • NOx Sensors: usually one before and one after the SCR to measure NOx levels. These feed back to the engine computer to control DEF dosing and ensure SCR is working.
  • Oxygen (O₂) Sensors: often in the exhaust stream (downstream of DOC/DPF) to monitor oxidation and help detect DPF regeneration status.
  • DPF Pressure Sensor: measures pressure drop across the filter to gauge soot loading (higher pressure drop = more soot).
  • Temperature Sensors: monitor exhaust temperature at key points (e.g. at the DPF) to control regen strategy.

Finally, exhaust clamps and hangers hold the system together. Clamps join modular sections and are torqued to prevent leaks. Over time they may need retightening to prevent exhaust leaks.

In sum, each component in the flow has a clear function: the DOC oxidizes gases and boosts NO₂, the DPF physically traps soot and burns it off (removing ~90% of PM), the SCR chemically reduces NOx using urea (turning it into N₂/H₂O), the muffler silences noise, and the tip exhausts the final gases. Meanwhile, EGR and CCV run in the background to reduce in-cylinder NOx and capture crankcase emissions. Together these pieces are the heart of modern diesel emission control.

Aftermarket Options Commonly Offered

Because diesel trucks are popular for towing and performance, many aftermarket parts and kits exist – both OEM replacements and “performance” mods. Common offerings include:

  • OEM Replacement Parts: Genuine or equivalent replacement exhaust components (manifolds, sensors, DOCs, DPF cartridges, mufflers, etc.) are widely available. These are direct-fit parts for maintenance or repair. Aftermarket versions of identical specs (aftermarket DOC/DPF units, clamps, etc.) are also sold to match OEM durability and compliance.
  • Modified Exhaust Manifold: Upgrading to an aftermarket exhaust manifold improves exhaust flow by using larger, smoother‑bore passages, which reduces backpressure and lowers exhaust temperatures. This enhancement accelerates turbo spool and boosts horsepower and torque. Many designs also employ thicker materials to resist cracks and thermal stress in heavy‑duty applications. Others use lighter, high‑strength alloys—such as 321 stainless steel, titanium, or Inconel—to reduce overall weight without compromising durability.
  • Modified Up‑Pipe: An upgraded up‑pipe replaces the factory EGR‑cooled pipe with a high‑flow, stainless‑steel unit that retains heat and minimizes boost lag. By eliminating the restrictive OEM bellows and offering smoother bends, it maintains exhaust velocity into the turbocharger, resulting in quicker spool and improved throttle response.
  • Modified Downpipe: Swapping in a larger‑diameter downpipe reduces backpressure downstream of the turbo, allowing spent gases to exit more freely. This modification lowers exhaust gas temperatures, reduces turbo lag, and can add 10–20 hp, especially when paired with a catted design. Improved flow also helps maintain cooler under‑hood temperatures.
  • DPF Delete Pipes: These kits replace the factory DPF with a straight exhaust pipe (and often delete resonator/muffler elements). Physically, the process is simple: People literally remove the DPF, swapping it out with a straight pipe or a special aftermarket DPF delete pipe. Because the ECU expects a DPF (and passive regen operation), a DPF-delete typically goes hand-in-hand with an engine tune or programmer to disable regeneration logic and avoid error codes.
  • EGR Delete Kits: Similar in concept, EGR-delete kits shut off the EGR system (for example by replacing the EGR valve with a blank plate and removing its cooler). This stops exhaust recirculation entirely, which can reduce intake soot contamination and improve power. As with DPF deletes, an ECU reflash is usually needed to prevent engine codes.
  • CCV Reroute/Delete Kits: These kits reroute or filter the CCV circuit. A common mod is a high-flow metal catch can or separator for the crankcase vapors (instead of the factory plastic separator or filter). The can captures oil mist and returns cleaner gas to intake. This can reduce oily deposits on the turbo and intercooler. Catch-can kits often include hoses and fittings to re-route the valve-cover vent. Additionally, some designs route crankcase vapors directly to the atmosphere—venting outside the vehicle rather than reintroducing them into the intake—an approach often used in race or off‑road applications
  • Performance Tuners/Programmers: Electronic tuners plug into the truck’s OBD-II port or sit inline with sensors to modify engine parameters. They can increase fuel injection (for more power/torque) or change the regen strategy, and they also allow reading and clearing diagnostic trouble codes. Many also allow disabling certain emission functions (like limiting regen). Tuners are commonly used by truck owners to extract extra performance or to accommodate deletes.

Each of these aftermarket options should be carefully considered. For maintenance or repair, OEM-style replacements keep the truck legal and functioning. Delete kits can boost performance but require careful ECU calibration and are restricted by law. A shop or owner might install a catch can or high-flow exhaust for longevity or power, but they should always ensure the engine management system knows about it (either through stock programming or a safe tune).

What Powers the Diesel Exhaust Mod Market: 3 Major Diesel Engines

The US pickup and heavy-duty truck market is dominated by three engine families: Ford’s Power Stroke V8 diesels, Dodge/Ram’s Cummins inline-6 engines, and General Motors’ Duramax V8.

  • Power Stroke (Ford):  First introduced in 1994 (a 7.3L turbo V8, built by Navistar), the Power Stroke name has since been applied to Ford’s range of turbodiesel engines.  In 2011 Ford began building its own 6.7L Power Stroke V8. Throughout its history, the Power Stroke line has been marketed directly against GM’s Duramax and Dodge’s.
  • Cummins (Ram):  Cummins began selling its big block inline-6 diesels to Dodge (now Ram) trucks in the late 1980s. The famous 5.9L B-series Cummins was introduced in 1984, and by 1987 it was the engine in Dodge Ram heavy-duty. These inline-6 diesels (later 6.7L versions) have been key to Chrysler’s truck strategy ever since.
  • Duramax (GM):  General Motors entered the market in 2001 with the Duramax 6.6L V8, developed in partnership with. From 2001 onward, the Duramax became the available diesel option in Chevrolet and GMC 3/4-ton and 1-ton trucks. It has since evolved (LLY, LBZ, LMM, LML, L5P, etc.), but always as a V8 diesel in GM pickups.

Because these three engine series cover most U.S. heavy pickups, most exhaust-system guides, tuners, and parts catalogs center around them.  (Whether you drive a Ford, Chevy/GMC, or Ram, the basic aftertreatment principles are the same, but the exact configuration of pipes, sensors, and control modules will be engine-specific.)

Conclusion

The evolution of diesel truck exhaust systems in the U.S. reflects a balance between environmental responsibility and vehicle performance. With increasingly strict EPA regulations, manufacturers have added advanced components like EGR, DPF, and SCR to meet compliance. Truck owners and enthusiasts—especially those in the aftermarket—navigate this complexity through both OE replacements and performance-oriented delete kits. Understanding each component's function not only helps in maintaining emissions compliance but also provides a foundation for safe and effective modifications.
