The 15-Quart Standard
Ford's service documentation for the 6.0L Powerstroke is unambiguous: the engine requires 15 quarts of oil when the filter is replaced as part of a complete oil change. Some owners report readings between 13.5 and 16 quarts depending on drain-back volume and when they check the dipstick — but those variations are measurement artifacts. The target you should be filling to, verified on a hot, level engine after a proper settling period, is the full-mark 15-quart line. No guesswork, no approximation.
Precision Matters: Why Eyeballing Is Dangerous On most engines, being half a quart low is a minor inconvenience. On the 6.0L, it can be catastrophic. This engine uses its oil for two entirely separate but equally critical functions simultaneously. The margin between running fine and HPOP starved, injectors rattling is surprisingly thin. A casual glance at the dipstick and a shrug is how expensive injector failures begin. The 6.0L demands discipline, not approximation.
The Dual-Role Oil: Lubricant and Hydraulic Fluid Most diesel engines ask oil to do one job: lubricate moving parts and carry heat away. The 6.0L asks it to do two. Alongside its conventional lubricating duties, the engine oil doubles as the hydraulic fluid that physically fires every fuel injector. This is the essence of the Hydraulic Electronic Unit Injection system, and it is the reason a full 15 quarts is not a recommendation. It is a requirement.
Deep Dive: Why Capacity and Volume Are Non-Negotiable
The HEUI System Requirements The High-Pressure Oil Pump draws from the engine sump and pressurizes oil to between 500 and 3,000+ PSI, in real time, based on injector demand. That high-pressure oil is routed through an internal manifold to each HEUI injector, where it acts as the actuating force that compresses fuel and creates injection. The ICP sensor monitors this pressure continuously; the IPR valve adjusts it.
The critical point: roughly 1.5 to 2 quarts of oil live permanently in the filter housing, the oil cooler, and the high-pressure lines at any given moment. That volume never returns to the sump during normal operation. If you fill to only 13 quarts, you are effectively running the sump at 11. The HPOP begins to cavitate. Injection pressure drops. The engine hesitates, stumbles, and if the problem is not resolved, it will result in injector destruction.
Thermal Management A larger oil sump is not just about volume, it is a thermal reservoir. Under sustained heavy towing, the 6.0L generates substantial heat through the turbocharger, EGR system, and high-pressure injection circuit. The 15-quart sump provides meaningful thermal mass, slowing the rate at which oil temperature climbs and extending the window before viscosity degrades under load. Trucks running the 6.0L with less than the full oil volume under towing conditions run hotter, shear their oil faster, and wear components more aggressively — often without any obvious warning until the damage is done.
Aeration & Foaming: The Hidden Killer When oil level drops below the minimum, the HPOP pickup begins to ingest air along with oil. Air does not compress. Air does not lubricate. Air does not transmit injection pressure. The result is aerated, frothy oil — a gray, milkshake-like fluid that looks alarming and performs terribly. Foamed oil fails to maintain a protective film on bearing surfaces, fails to build consistent ICP, and causes rough running, injector stiction, and in severe cases, bearing damage. And because foaming can cause a false-high dipstick reading, the problem sometimes hides itself until it is already doing harm.
The Filter Factor: How Hardware Affects Capacity
The Motorcraft FL-2016 Mandate There is only one acceptable oil filter for the 6.0L Powerstroke: the Motorcraft FL-2016. This is not brand loyalty or marketing. It is an engineering specification. The FL-2016 is designed to the exact cartridge height and bypass valve calibration that Ford engineered into the 6.0L filter housing. The filter's physical dimensions ensure that when the housing cap is torqued down, the internal drain-back valve seats fully and correctly — sealing the housing and allowing the entire 15-quart volume to pressurize properly on startup.

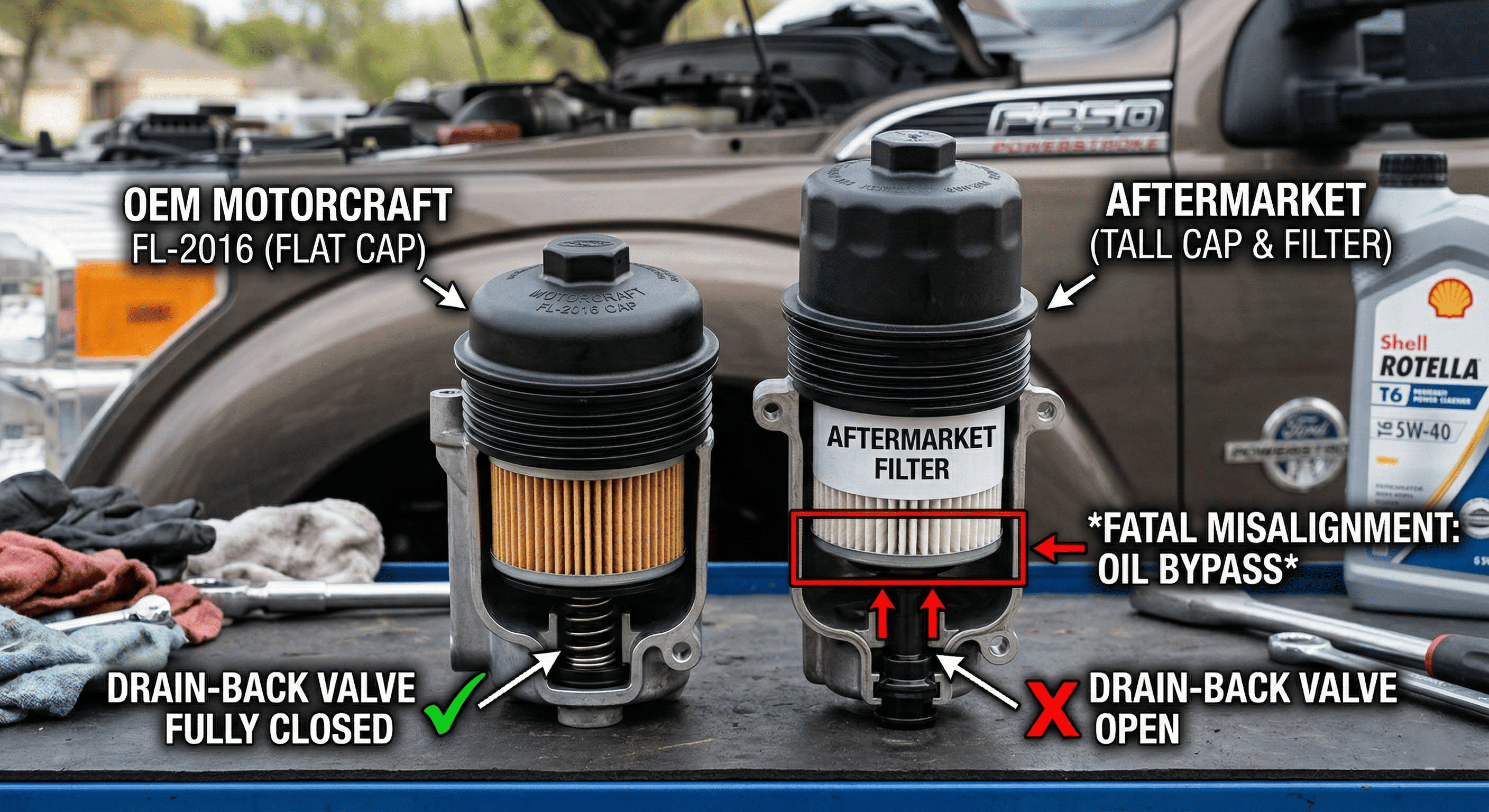

The Tall Cap Trap: Aftermarket Filter Dangers The 6.0L uses a cartridge-style filter in a plastic or metal housing on the passenger side of the engine. The housing design incorporates a spring-loaded drain-back valve at the base that the filter cartridge must physically contact and depress to seal.

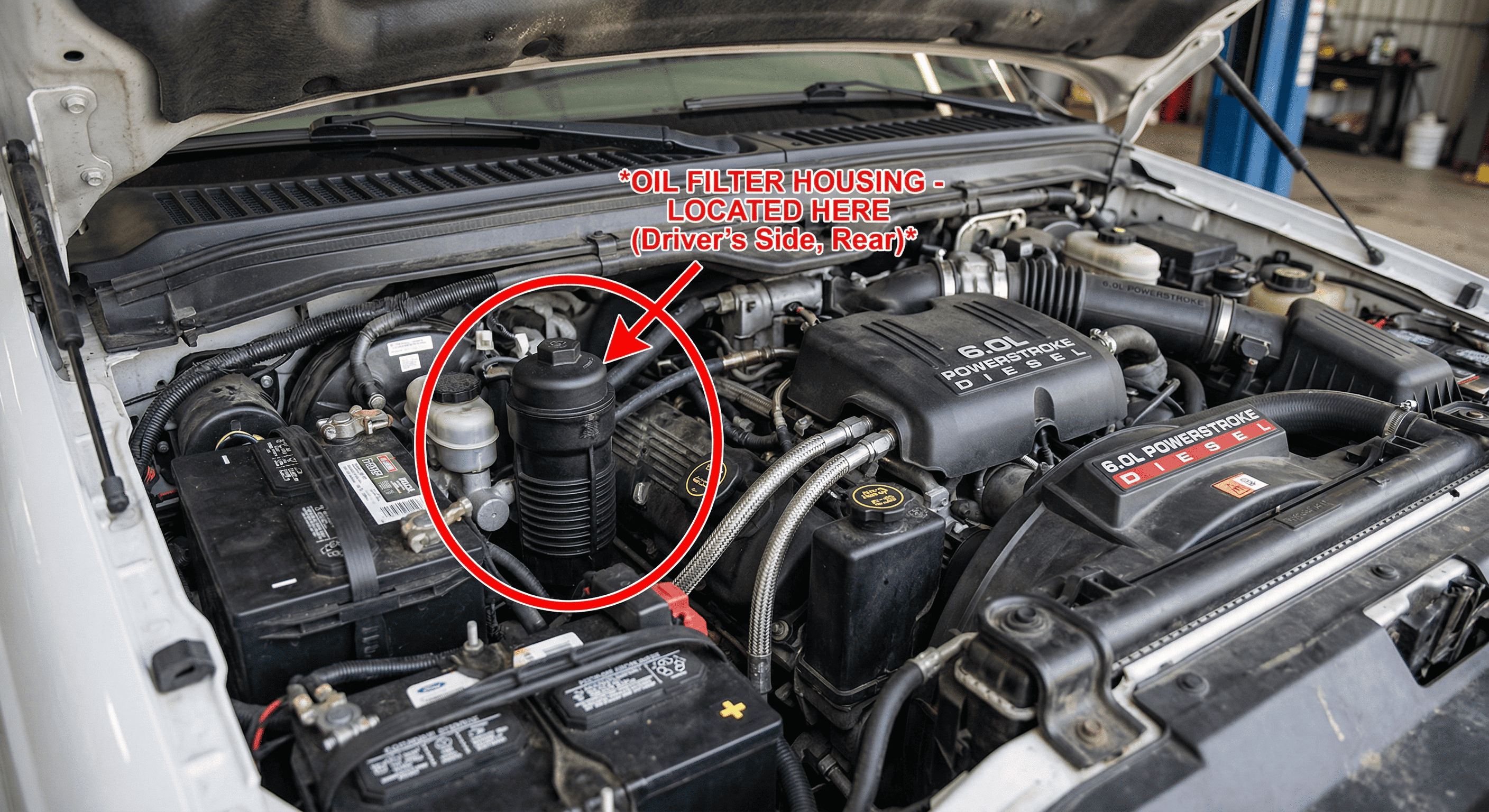

Oil Filter Housing 101: Ensuring a True 15-Quart Refill Because the filter housing sits above the oil pan and holds residual oil, the sequence in which you remove components during a drain matters. For a true, complete oil change:
Remove the filter housing cap first, before pulling the drain plug. This allows the housing to drain down through the engine while the pan is draining simultaneously. Failing to do this can leave up to a quart of old oil sitting in the housing, which mixes with your fresh fill.
Inspect the housing interior for sludge, debris, or contamination before installing the new filter — a dirty housing is a sign of deeper oil quality problems.
Replace the housing cap O-ring every other oil change. The O-ring is cheap; the oil it contains is not.
After reassembly, dry-fill the housing with roughly a quarter-quart of fresh oil before installing the cap. This pre-charges the filter and reduces dry-startup duration.
Selecting the Right Oil for the 15-Quart Refill
Viscosity for the HEUI: Why 5W-40 Full Synthetic Is the Community Standard The 6.0L Powerstroke community has converged decisively on 5W-40 full synthetic diesel oil, and for good reason. The HEUI system's demand for consistent high-pressure oil delivery makes viscosity stability under shear and temperature the single most critical oil property on this platform.
Top community-proven choices:
Shell Rotella T6 5W-40 Full Synthetic — the most widely used option
Mobil 1 Turbo Diesel Truck 5W-40
AMSOIL Signature Series 5W-40
Schaeffer's Supreme 9000 or AMSOIL OE 10W-30 for extreme cold climates
Additive Synergy: Archoil AR9100 and Rev-X Even with premium 5W-40 synthetic, high-mileage 6.0L injectors often benefit from a dedicated friction modifier additive. Archoil AR9100 and Rev-X are the two products the 6.0L community has adopted as near-standard practice. One 16-oz treatment bottle is sized to treat the full 15-quart fill.
The mechanism is straightforward: AR9100 and Rev-X coat metal surfaces with a tenacious boundary-layer film that persists even during the critical seconds of cold-start before oil pressure fully builds. Owners with stiction-affected injectors consistently report smoother cold starts, reduced startup rattle, and more consistent idle after a single treatment. Many add one bottle at every oil change; others do so every other change. Follow the manufacturer's dosage — over-treating does not improve performance.
API Standards: CK-4 vs. CJ-4 Both CJ-4 and the newer CK-4 specifications are appropriate for the 6.0L Powerstroke. The key differences:
Rating Key Property Verdict for 6.0L
CJ-4 Designed for engines with DPF; high ZDDP anti-wear package
Fully compatible; excellent choice
CK-4 Improved oxidation resistance and shear stability over CJ-4
Preferred if available; backward-compatible
FA-4 Low-viscosity formulation for newer engines; NOT recommended
Avoid — too thin for HEUI demands
Professional Oil Change & Level Verification
The 15-quart fill is only as good as the procedure used to achieve it. The 6.0L has hidden oil volumes and specific sequencing requirements that, if ignored, produce false readings and incomplete fills.
VIDEO
The 15-Quart Procedure Step 1 — Warm the engine thoroughly. Drive to operating temperature or idle until the coolant temperature stabilizes. Hot oil flows completely; cold oil leaves residual film on every surface, inflating apparent drain volume and masking the true fill level.
Step 2 — Remove the filter housing cap first. Before pulling the drain plug, crack the filter housing cap loose. This allows the housing to drain simultaneously with the pan, recovering up to a quart of old oil that would otherwise remain trapped in the upper engine.
Step 3 — Drain the pan completely. Allow 10–15 minutes minimum. Rushing this step leaves old, degraded oil behind — contaminating your fresh fill from the first moment.
Step 4 — Install the FL-2016 and replace the O-ring. Remove the old cartridge, clean the housing interior, install the new filter, and fit a fresh O-ring with a light film of new oil to prevent tearing on installation.
Step 5 — Reinstall the drain plug and pre-fill the filter housing. Pour a small amount (roughly 4–6 oz) of fresh oil into the filter housing before capping it. This pre-charges the filter element and shortens the initial dry-running window on first start.
Step 6 — Fill with 14 quarts, start, run briefly, then top off. Add 14 quarts of fresh 5W-40, start the engine, let it idle for 30–60 seconds to circulate oil through all circuits, then shut off. This fills the high-pressure lines, oil cooler, and filter housing from your fill. Now add oil to reach the full mark — typically bringing total fill to 15 quarts.
The Wait and See Rule After shutdown, wait a minimum of 15 to 20 minutes before reading the dipstick. Oil in the high-pressure circuit, turbo housing, and passages drains back slowly. Reading the dipstick at 2 minutes gives a false low reading and can cause overfilling. Overfilling is not harmless — it introduces aeration risk and can overwhelm the Crankcase Ventilation (CCV) system. Wait. Then read. Then trust the dipstick.
Overfilling vs. Underfilling: The Specific Risks
Underfilling (Below MIN Mark)
HPOP pickup begins to ingest air at low sump level
ICP pressure drops — hesitation, misfire, rough idle
Injector stiction accelerates from poor HEUI lubrication
Turbo bearings see oil starvation under boost
Overfilling (Above FULL Mark)
Crankshaft whips oil into aerated foam as it rotates
Foamed oil cannot maintain consistent ICP — similar symptoms to underfilling
CCV system becomes overwhelmed, causing oil mist in intake and white smoke
False dipstick readings can mask the problem until damage is advanced
Conclusion
The 6.0L Powerstroke has a well-documented reputation. Owners who respect the engineering — who understand why 15 quarts of CK-4 5W-40 full synthetic behind a Motorcraft FL-2016 is not a suggestion but a system requirement — routinely accumulate 250,000 to 350,000 miles with original injectors, original heads, and original turbochargers intact. Owners who don't, often don't make it to 150,000.
The math is simple. A full 15-quart synthetic oil change with a genuine Motorcraft filter and a bottle of Archoil AR9100 costs roughly $80 to $100. A set of 8 genuine Motorcraft injectors costs $3,000 to $5,000 — plus labor. An EGR cooler failure that becomes a head gasket job can exceed $8,000 at a shop. Every 5,000-mile oil change is a payment into an insurance policy that almost always pays out.
Treat the volume correctly, and the 6.0L Powerstroke is a capable, durable engine that will pull a heavy trailer in confidence for well over a quarter-million miles. Fifteen quarts. Every time. On schedule. That's the whole secret.
