What is the P2509 Diagnostic Trouble Code (DTC)?
Quick Definition The P2509 code is defined as ECM/PCM Power Input Signal Intermittent — meaning the Engine Control Module (ECM) detected an unstable or momentarily lost power supply signal during vehicle operation. In plain language: your engine's brain briefly lost its electricity, panicked, and logged a fault.

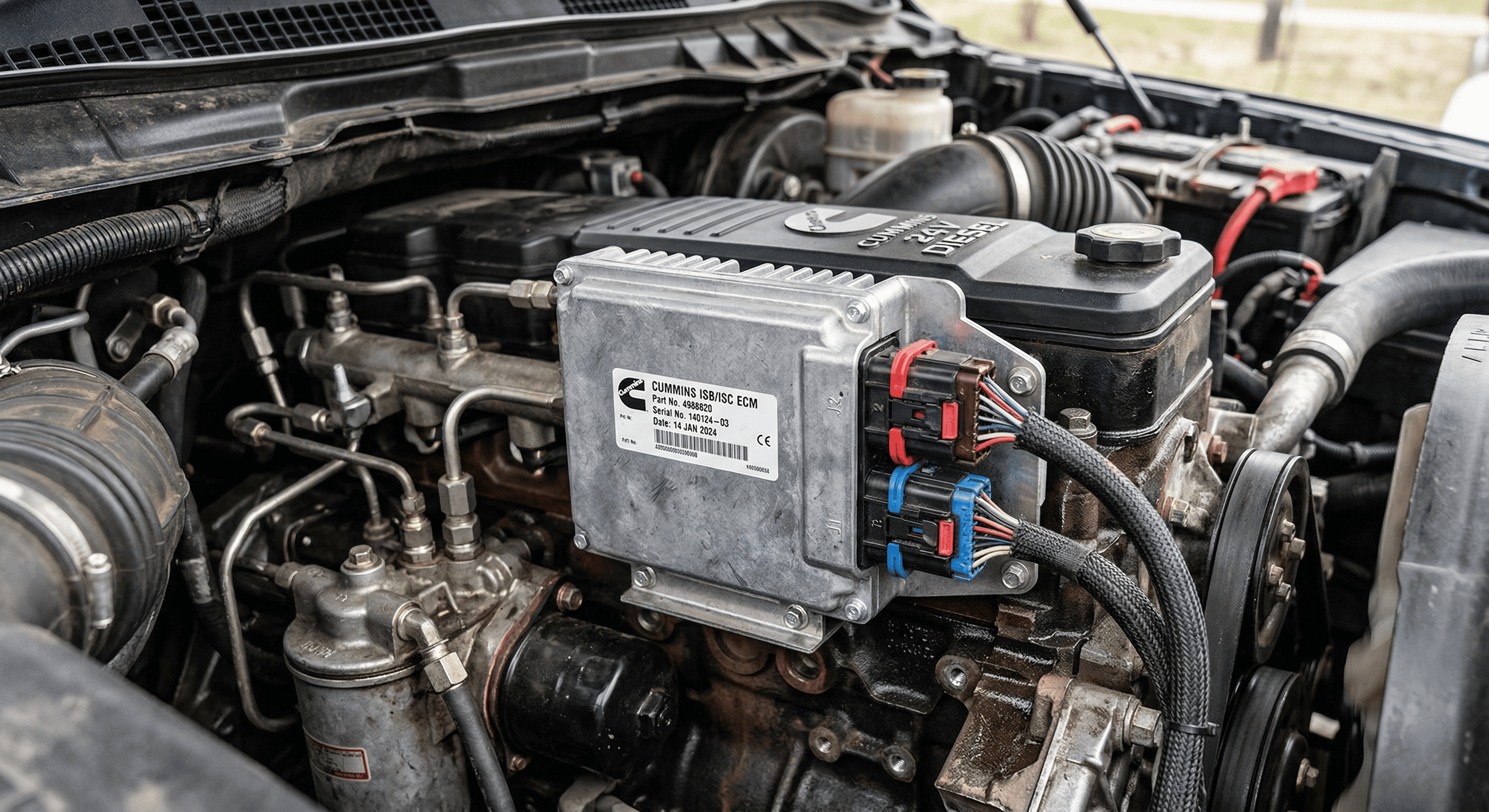

Why it Matters The Cummins ECM is not just an on/off switch — it is a precision microprocessor that manages fuel delivery, injection timing, emissions controls, and dozens of real-time parameters. Even a millisecond of unstable voltage can force the ECM to reset, corrupting operational data and triggering a cascade of secondary faults. On a diesel that depends on electronic injection, a compromised power supply is not a cosmetic issue — it is a direct threat to drivability and reliability.
Common Symptoms of a P2509 Code
Not every P2509 behaves the same way. Some trucks throw the code and run fine for weeks; others won't fire up at all. Here is what to watch for:
Check Engine Light (CEL) Illumination — The most consistent symptom. The MIL (Malfunction Indicator Lamp) illuminates and typically stays on, though it may cycle on and off if the fault is truly intermittent.
Intermittent or No-Start Condition — The ECM may fail to complete its power-up sequence on key-on, preventing fuel injection from initializing. The engine cranks but does not fire, or only starts after multiple attempts.
Engine Stalling While Driving — A sudden voltage drop during operation can cause the ECM to reset mid-drive, cutting fuel delivery without warning. This is the most dangerous symptom and demands immediate attention.
Erratic Engine Behavior or Grid Heater Issues — Rough idle, unexpected RPM fluctuations, or the grid heater (intake air heater) failing to cycle correctly. The ECM controls the grid heater relay; unstable power causes inconsistent heater operation, especially noticeable in cold starts.
Note: Multiple P2509 entries in the freeze-frame data — especially codes logged at different times — are a strong indication of a wiring or connection problem rather than a failed component. Each entry represents another voltage dropout event.
The Headache of P2509: Why Is It Usually Intermittent?
The Root Cause Unlike a dead sensor or a blown fuse — failures that are catastrophic and permanent — the P2509 almost always traces back to an intermittent electrical problem. The voltage does not disappear entirely; it dips, wobbles, or drops briefly under specific conditions such as hard cranking, high electrical load, or vibration over rough road surfaces.
The usual suspects are: corroded battery terminals creating resistance at the connection point, loose or fretting cable ends that briefly lose contact under vibration, an aging battery that passes a resting voltage check but collapses under cranking load, or a marginally failing alternator that almost keeps up with demand but drops voltage at peak load. None of these failures are dramatic enough to be obvious — which is precisely what makes P2509 so frustrating to chase.
Note: The Cummins ECM continuously updates adaptive memory tables that fine-tune injection quantity, timing, and idle speed to your specific engine's wear characteristics. Every time the ECM loses power — even briefly — these learned calibrations can be partially or fully erased. The engine may run noticeably rougher, idle unevenly, or exhibit sluggish throttle response after a P2509 event, even once the underlying electrical fault is corrected. This is normal; the ECM will relearn its tables over 50–100 miles of mixed driving. If symptoms persist beyond that, the electrical root cause has not been fully resolved.
Step-by-Step Diagnosis & Fixes
Work through these steps in order — from cheapest and most common to most complex. The majority of P2509 codes are resolved before Step 4.
Step 1: Inspect and Clean Battery Cables & Terminals Action : Start here — always. Remove both battery cables from both batteries (Cummins-powered trucks run dual batteries) and inspect every terminal contact point. Look for white or blue-green powder (corrosion), dark discoloration, loose clamp bolts, or frayed cable ends. Pay particular attention to the jumper cable that bridges the two batteries; this cable sees high current during cranking and is a frequent corrosion point that is easy to overlook.
Fix : Mix a paste of baking soda and water and scrub terminals with a wire brush until bare metal is exposed. Rinse, dry, and coat with dielectric grease or terminal protector spray. Torque all clamp bolts to specification — finger-tight is not tight enough. If the cable ends are heavily pitted, crystallized, or the cable insulation is cracked and brittle, replace the cables entirely. A $25 battery cable is cheap insurance against a $1,500 ECM diagnosis.
Tips: This single step resolves P2509 in the majority of cases. Corrosion at the battery terminal creates resistance; resistance causes voltage drop under load; voltage drop triggers the P2509. Clean terminals first, always.
Step 2: Test Battery Voltage and Load Action : A resting voltage check (12.6V per battery with the engine off) is not sufficient. Cummins diesels draw enormous current during cold cranking — often 800–1,000 cold cranking amps (CCA) or more. A battery that reads 12.5V at rest can collapse to 9V or below under cranking load, causing exactly the voltage dropout that triggers P2509. Have both batteries load-tested at an auto parts store or with a dedicated battery tester — most will do this for free.
Fix : If either battery fails the load test, replace both batteries as a matched pair. This is not optional on a dual-battery system. Mismatched batteries — one new, one aging — charge unevenly, cycle unevenly, and drag each other down. The newer battery compensates for the weaker one until both fail prematurely. Replace together; it costs more upfront and far less over time.
VIDEO

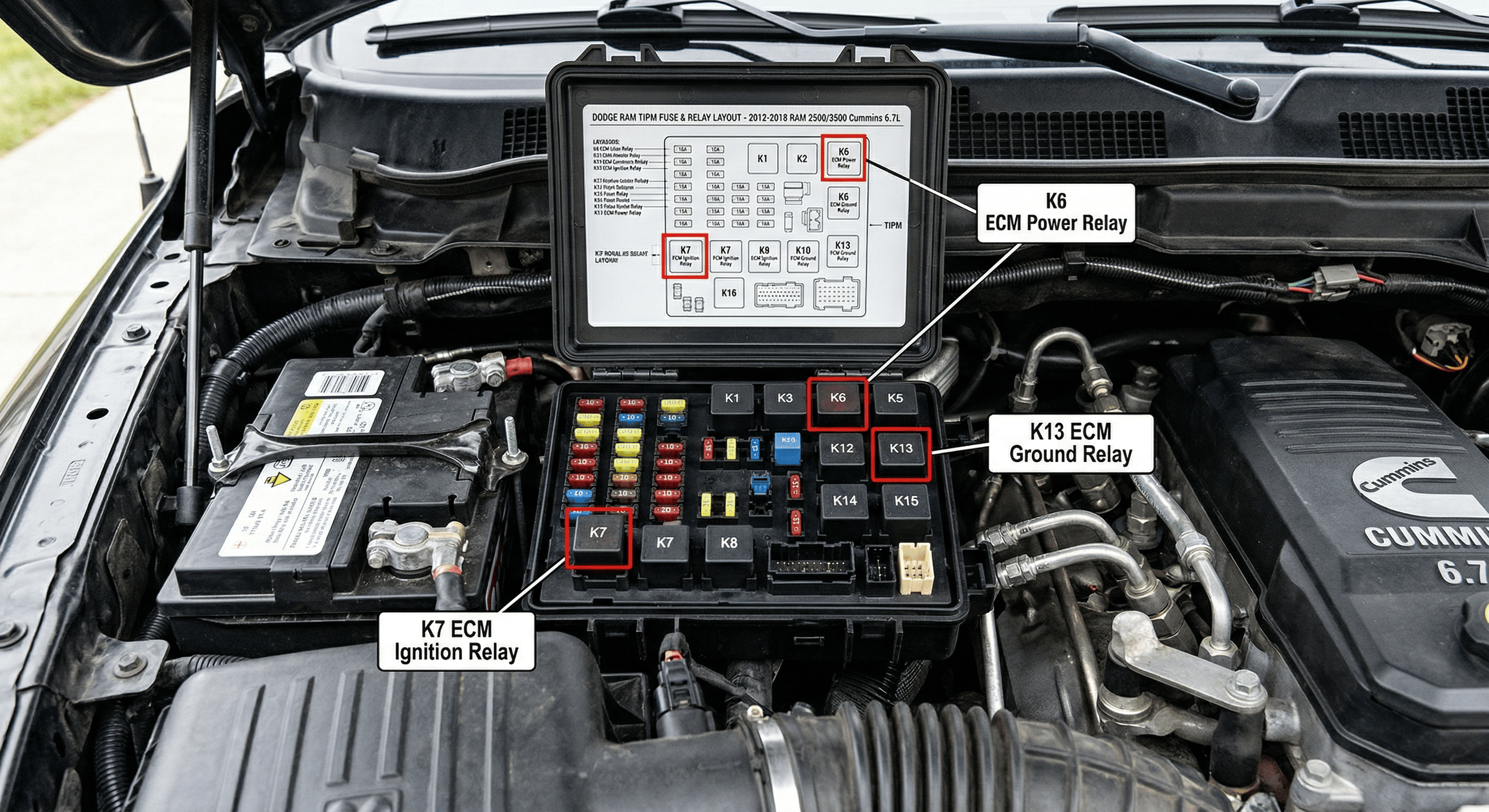

Step 3: Check ECM Power Relays and Fuses Action : Locate the fuse and relay panel (typically in the engine bay on Cummins-equipped Ram and commercial trucks) and identify the relays and fuses associated with ECM power supply. Consult your service manual for the exact fuse numbers — on most ISB/ISC/ISL applications, there are one or two dedicated ECM power fuses and at least one ECM power relay.
Fix : Pull and visually inspect each fuse — a hairline crack in the element is easily missed under dim lighting; use a fuse tester or multimeter for certainty. For relays: swap the ECM power relay with an identical relay from a non-critical circuit (horn, accessory) as a quick functional test. Relays can pass a static bench test but fail intermittently under thermal stress. If the relay runs warm or hot to the touch during normal operation, replace it — heat is a sign of internal resistance buildup and impending failure.

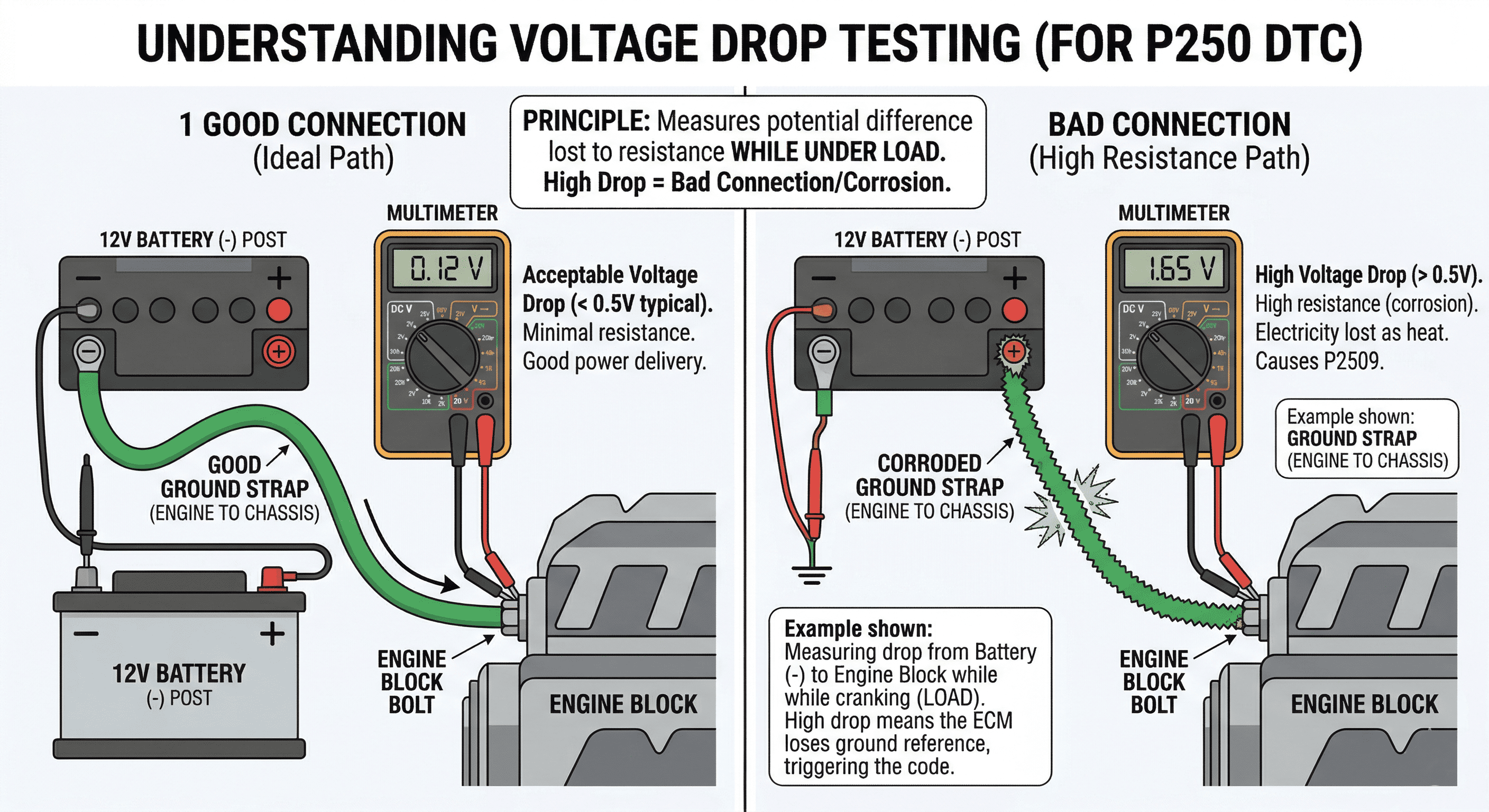

Step 4: Perform a Voltage Drop Test Action : This test finds resistance hiding inside wires and connections that look fine visually. Set your multimeter to DC voltage. With the engine cranking (have a helper), place the positive probe on the battery positive post (not the cable clamp — the post itself) and the negative probe on the ECM power supply terminal. Any reading above 0.5 volts indicates unacceptable resistance somewhere in that circuit. Repeat on the ground side: positive probe on the ECM ground terminal, negative probe on the battery negative post.
Fix : A high voltage drop on the power side points to a damaged wire, corroded connector, or a failing fusible link. On the ground side, the most common culprit is a chassis ground strap — the braided or solid copper strap that connects the engine block or battery negative to the firewall or frame. These ground straps corrode internally while appearing intact externally. Unbolt, clean the contact surfaces to bare metal, and reinstall with fresh hardware. Adding a supplemental ground strap from the battery negative to the chassis is cheap and often permanently resolves intermittent electrical gremlins on high-mileage trucks.
Step 5: Test the Alternator and Charging System Action : A healthy alternator should produce 13.8 to 14.8 volts at the battery terminals with the engine running and a moderate electrical load (headlights and HVAC on). Below 13.5V suggests an undercharging alternator or a failing voltage regulator. Above 15V suggests an overcharging condition that can damage the ECM and batteries. Check voltage both at idle and at 2,000 RPM — a weak alternator may produce adequate voltage at higher RPM but drop below threshold at idle under load.
Fix : If output is low, start with the alternator's own connections — the output stud, ground connection, and sense wire — before condemning the unit. A loose alternator output connection is a common and easily missed fault. If connections are sound and output is still low, the alternator or its internal voltage regulator requires replacement. Always replace with a unit rated to OEM amperage or higher — undersized replacement alternators are a frequent source of recurring P2509 complaints.
Step 6: Address TIPM or ECM Issues (Worst-Case Scenarios) Action : If every previous step checks out — clean terminals, strong batteries, healthy fuses and relays, acceptable voltage drop, proper alternator output — the fault escalates to either the Totally Integrated Power Module (TIPM) or the ECM itself. The TIPM manages power distribution across the vehicle; internal shorts or failed driver circuits within the TIPM can cause intermittent ECM power supply issues that are indistinguishable from external wiring faults without module-level testing.
ECM failure producing a P2509 is rare but possible — typically the result of prolonged operation with severe voltage spikes or internal component degradation on very high mileage units.
Fix : TIPM diagnosis and ECM evaluation require professional-grade scan tools capable of live module communication testing, not just code reading. This is the point at which a certified diesel specialist with Cummins factory tooling earns their labor rate. Do not skip steps 1–5 to get here — the vast majority of P2509 codes are resolved long before this stage.
Preventing Future Electrical Gremlins & Knowing When to Call a Pro
Maintenance Tips
Clean and inspect battery terminals every six months — or immediately after any hard-start event. Corrosion builds invisibly; by the time it causes a symptom it has already been degrading your electrical system for months.
Replace batteries proactively at 4–5 years on a diesel. Cummins engines are hard on batteries; dual-battery systems are particularly demanding. Waiting for a battery to completely fail on a diesel is a false economy.
Inspect and re-torque all visible ground straps annually. Ground straps on engines and chassis are frequently forgotten during routine maintenance. Thirty seconds with a wrench can prevent hours of diagnostic headaches.
When to Get Help If you have worked through all six diagnostic steps, replaced batteries and cables, cleaned every ground point, and the P2509 continues to return — stop. You are past DIY territory. Complex TIPM internal faults, ECM power circuit failures, and harness-level shorts inside conduit runs require specialized equipment and training to diagnose correctly. A misdiagnosis at this level — replacing an ECM that was not the root cause — is an expensive mistake that a qualified diesel shop will avoid.
Look for a Cummins-authorized repair facility or a diesel specialist with Insite or similar factory-level diagnostic software. The labor cost for a proper root-cause diagnosis is almost always less than the cost of replacing the wrong part.
Conclusion
The P2509 code sounds alarming, but the truth is that the overwhelming majority of cases trace back to something embarrassingly basic: corroded battery terminals, an aging battery that can no longer handle cranking load, or a loose ground strap that has been slowly oxidizing under the hood. The ECM itself is almost never the culprit.
Follow the six-step diagnostic sequence in this guide, work from the outside in, and you will resolve most P2509 codes with nothing more than a wire brush, a multimeter, and a pair of new batteries. Your Cummins will reward you with the reliable, hard-working performance it was built to deliver. The code sounds expensive. The fix, most of the time, is not.
