2007.5–2012 Ram 6.7L Cummins Delete Guide: What You Need to Know

Written by Derek Miller

April 07, 2026

If you're running an early 6.7L Cummins, you're sitting on one of the most tuner-friendly diesel platforms ever built. No Security Gateway module. No CP4 injection pump ticking like a time bomb. No encrypted ECM requiring a $500 mail-in unlock before a tuner will even look at your truck. The 2007.5–2012 Ram 2500/3500 is the generation the aftermarket grew up on — and for good reason.

This guide walks you through everything you need to delete and tune an early 6.7, from the parts stack to the common mistakes that turn a clean build into an expensive lesson.

1. 2. Why the 2007.5-2012 Platform Is the Easiest Generation to Delete 3. The Full Delete Stack: What You're Removing and Why 4. Tuning Requirements After the Delete 5. Common Mistakes on Early 6.7 Deletes 6. FAQ

Why the 2007.5-2012 Platform Is the Easiest Generation to Delete

Three things separate this generation from everything that came after.

First, there's no SGW (Security Gateway). Starting in 2019, Ram added an encrypted gateway module that blocks unauthorized ECM communication. On your truck, a tuner plugs in and gets to work — no bypass hardware required.

Second, you have the CP3 injection pump. The CP3 is a robust, well-understood pump that handles aggressive fueling without complaint. The CP4.2 that replaced it in 2019 is notorious for catastrophic failure, sending metal debris through the entire fuel system. You don't have that problem.

Third, OBD-II access is straightforward. EFI Live, PPE, and other major platforms support early 6.7 calibrations fully, with extensive tuner networks built around this exact generation.

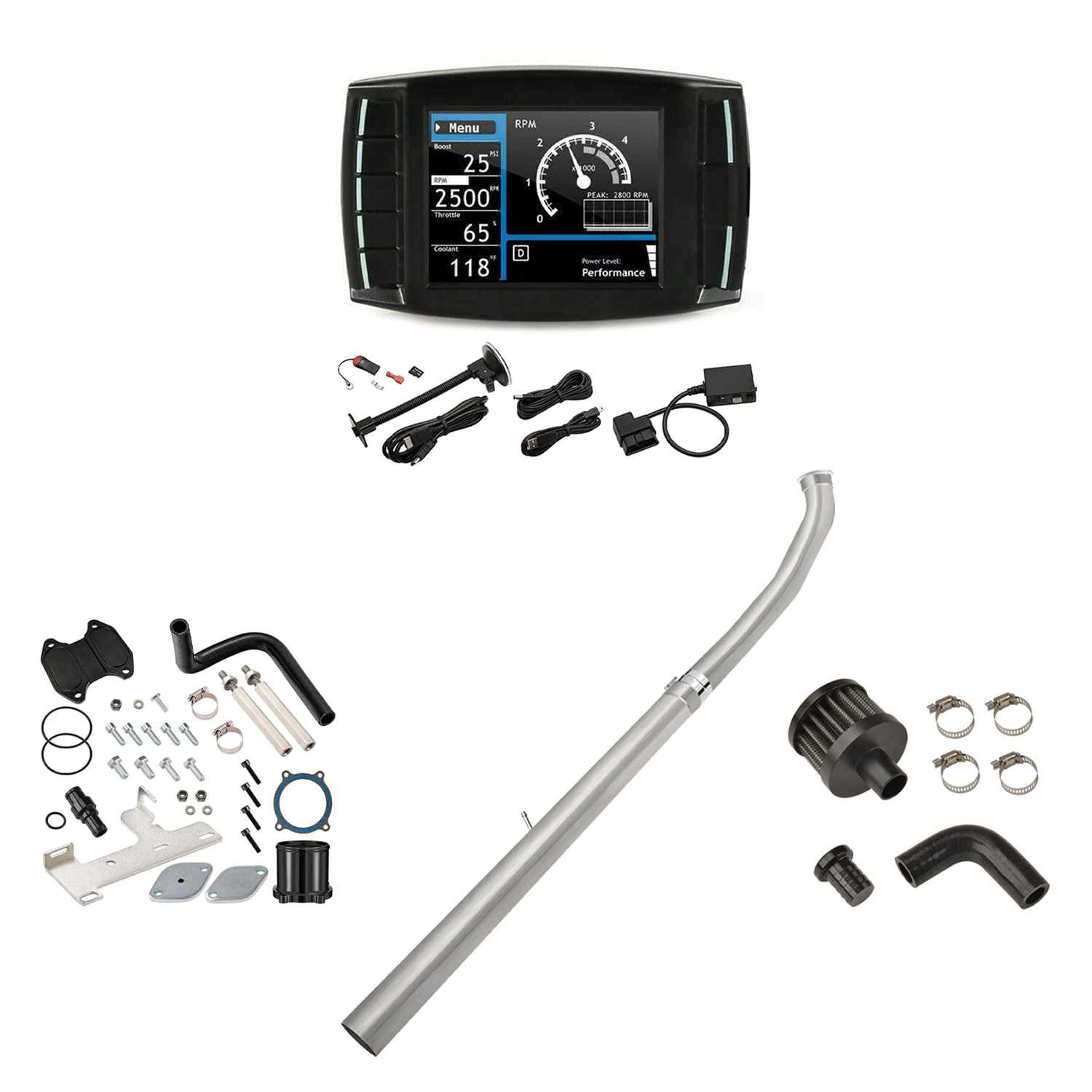

The Full Delete Stack: What You're Removing and Why

A complete emissions delete on a 2007.5–2012 6.7 involves four systems.

DPF + CAT delete pipe. The Diesel Particulate Filter clogs on a regular cycle, forcing active regeneration cycles that dump raw fuel into the exhaust to burn off accumulated soot. A 5" delete pipe flows better than a 4" option and is the preferred choice for any tuned build — the marginal cost difference is worth it in exhaust velocity and EGT management.

EGR cooler and valve delete. The EGR system recirculates hot exhaust gas back into the intake to reduce combustion temperatures. Over time, the EGR cooler cracks and introduces coolant into the intake. EGR delete eliminates this failure mode entirely. After installing the delete kit, add a coolant filter to the system — this catches any debris left behind from a cooler that was already beginning to fail. Skipping the coolant filter is one of the most common oversights on this platform.

DEF/SCR system. Here is one of the biggest advantages of the 2007.5–2012 generation: if you are driving a standard Ram 2500 or 3500 pickup, your truck is completely pre-DEF. You do not have a Selective Catalytic Reduction (SCR) system or a Diesel Exhaust Fluid (DEF) tank to worry about deleting or maintaining, as Ram didn't add DEF to standard pickups until 2013. However, if you are building a 2011–2012 Ram 3500/4500/5500 Cab & Chassis commercial model, you do have DEF. For those specific rigs, a full DEF/SCR delete kit is required to remove the dosing module, tank, and wiring, which must be accompanied by an ECM calibration to disable cleanly.

Grid heater delete. The grid heater bolt is a known failure point on 6.7 Cummins engines — corrosion causes the bolt to shear and drop into the intake, destroying the engine. A grid heater delete kit eliminates this risk entirely and is one of the highest-value, lowest-cost upgrades on this platform. See our full breakdown of the Killer Bolt issue for details.

Tuning Requirements After the Delete

Hardware removal alone will not get you running cleanly. The ECM needs to be recalibrated to account for every sensor and system you've removed, otherwise you'll live in limp mode with a dashboard full of fault codes.

EFI Live Autocal vs. PPE. EFI Live with a DSP5 switch gives you five switchable power levels on the fly — ideal if you want a daily driver mode and a towing mode without reflashing. PPE is a simpler, more affordable option that works well for owners who want a single performance calibration and don't need on-the-fly switching.

Power level tiers to consider:

Daily driver (80–120 RWHP gain): Safe for stock drivetrain, good fuel economy improvement
Tow (120–200 RWHP gain): Requires attention to transmission behavior (see below)
Performance (200+ RWHP gain): Requires supporting modifications — do not go here on a stock drivetrain

TCM tuning and the 68RFE. This is where most early-gen delete builds go wrong. The 68RFE automatic transmission is the weakest link in the 2007.5–2012 Ram platform. At tow or performance power levels, the stock TCM calibration will cause the transmission to slip, flare on shifts, and eventually fail. If you're pushing past daily driver power levels, a TCM tune is not optional — it's part of the package. Several tuners offer combined ECM/TCM calibrations. For builds above 550 RWHP, budget for a built 68RFE or consider the Aisin manual transmission swap.

Common Mistakes on Early 6.7 Deletes

Skipping the lift pump. The CP3 is a strong pump, but it was engineered for stock fuel demand. At tow or performance tune levels, the CP3 relies on the stock low-pressure supply system, which can't keep up. Fuel aeration and cavitation at the injection pump is the result. A FASS or AirDog lift pump eliminates this problem and protects your CP3. Consider it mandatory above 500 RWHP.

Ignoring the coolant filter after EGR delete. Already mentioned above, but worth repeating: if your EGR cooler was beginning to crack before the delete, debris is in your coolant system. A coolant filter catches it before it reaches the water pump and cylinder head passages.

Skipping ARP head studs on high-power tunes. At daily driver power levels, the factory head bolts are fine. Push into a performance calibration — particularly anything tuned aggressively for high cylinder pressure — and a blown head gasket becomes a real risk. ARP 2000 head studs are the correct upgrade for builds in the 550–700 RWHP range. ARP Custom Age 625+ studs are the choice for anything above that. Don't build a high-horsepower engine on stock fasteners.

FAQ

Will deleting void my warranty?
If your truck is still under any factory powertrain warranty, yes — emissions modifications give the dealer grounds to deny warranty claims on powertrain components. On a 2007.5–2012 truck, this is rarely a practical concern, but verify your coverage before proceeding.

Will it throw codes after the delete?
Without a proper ECM tune, absolutely. The ECM monitors every sensor tied to the DPF, EGR, and SCR systems. A calibration from a reputable tuner disables all associated diagnostic monitors cleanly. A pipe-only, no-tune install is never the right approach.

Disclaimer: The modifications discussed in this article involving the removal of factory emissions equipment are strictly for closed-course competition and off-road use only. It is a violation of federal law to remove or disable emissions equipment on highway-driven vehicles.
