What Changed in 2019: The Security Gateway Module

The SGW is a hardware module that sits between the OBD-II port and every control module on the truck, including the engine, transmission, and body control. Without authorization from Chrysler's AutoAuth servers, a device plugged into the OBD-II port can read basic emissions data, but every command involving actuator control, module resets, or writing a calibration file gets rejected at the protocol level. That's the "read error" or failed handshake owners run into.

This part of the story matches what's usually said about these trucks: the SGW is real, it's been standard since the 2019 model year, and it exists specifically to stop unauthorized read/write access over OBD-II.

What doesn't apply to the 2019-2021 trucks is a second, independent encryption layer on the ECM itself. That's a 2022-and-later problem (more on that below). For 2019-2021, getting past the SGW is the entire unlock process. There's no second wall behind it.

The Fix: A Physical SGW Bypass, Not a Mail-In Unlock

Because there's no ECM-side encryption to remove on these model years, the aftermarket solution is a bypass cable or harness that physically reroutes the CAN-H/CAN-L signal around the SGW. Nothing gets shipped off, and nothing gets pulled apart at a lab.

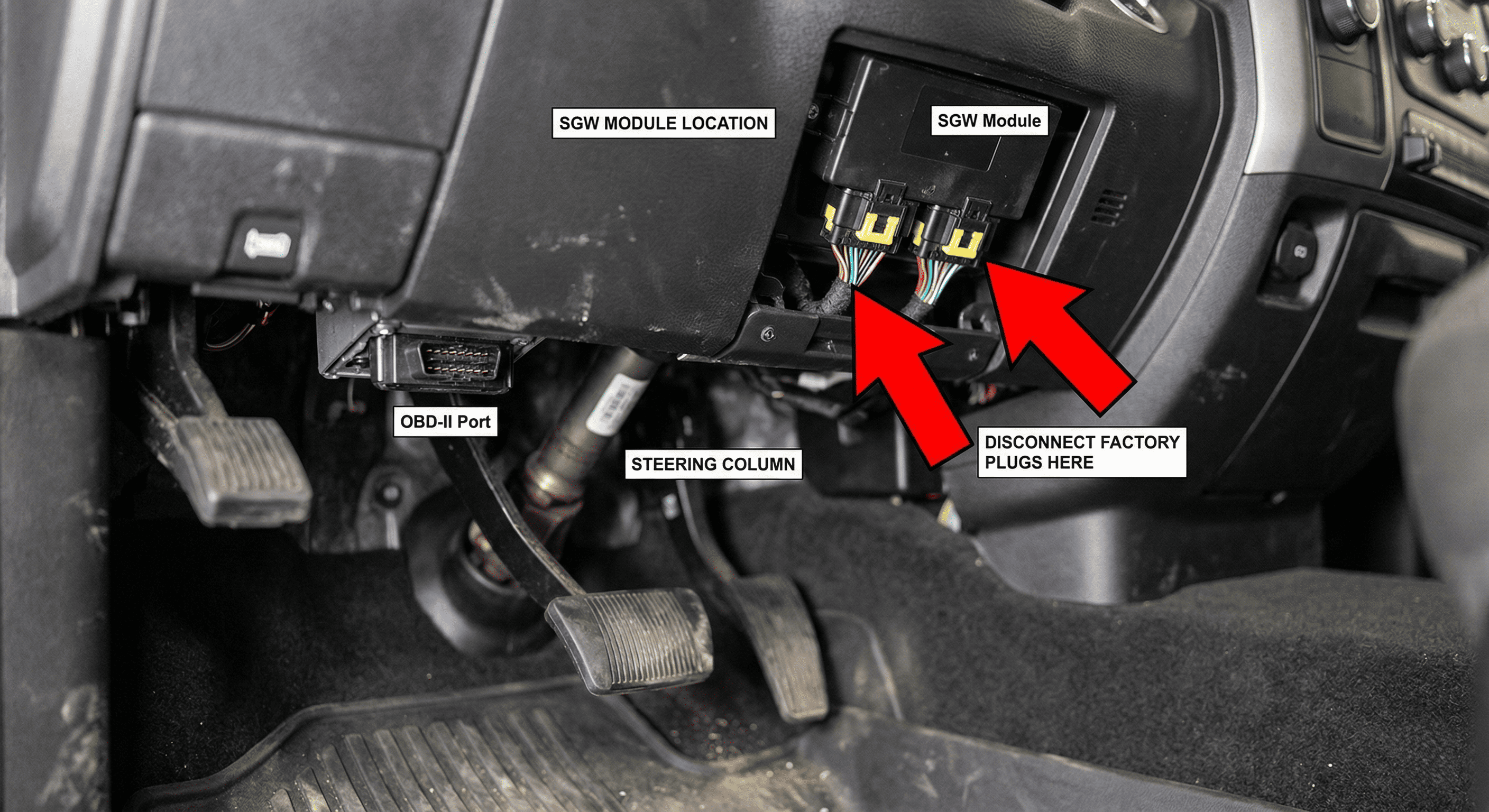

Where the SGW module actually is

Location depends on the platform, and it's worth knowing before you start pulling trim:

  • 2018 model-year trucks and 2019-2022 Ram 1500 Classic (DS chassis): behind the infotainment head unit.
  • 2019-2022 Ram 2500-5500 (the trucks this guide covers): tucked behind the instrument cluster. The steering column has to come down and the cluster pulled back to reach the connector.
  • Current-generation Ram 1500 (DT chassis): moved to the driver's footwell, right above the OBD-II port, for much easier access.

Two ways to do the bypass



Basic bypass cable install. Using a terminal release tool or a sewing needle, the two grey pin locks on the back of the factory OBD-II connector are released, and the factory wires on pins 6 and 14 are pulled out and cross-connected into the bypass cable's harness. Those two new data wires need a twist roughly every two inches to resist EMI. The other end plugs into an open slot on the green "star connector" near the parking brake pedal. Done correctly, this reroutes CAN-H/CAN-L around the SGW entirely.

Plug-and-play modules. These skip the pin-swapping under the dash by creating an entirely new, isolated high-speed OBD-II port elsewhere in the truck. They cost more, but they also unlock extras beyond tuning access: tire-size recalibration, TPMS threshold adjustment, factory lighting behavior, and disabling auto stop-start.

Module options

Option Best For Extra Features Typical Price
Basic bypass cable (e.g., Fish Tuning, GDP) Tuning access only None $35-$100
Tazer / Double Bypass harness Tuning + deep customization TPMS, tire size, lighting, AWD force, auto stop-start, more $250-$350

If all you need is for your tuner to talk to the truck, a basic bypass cable does that job completely. The higher-priced modules are for owners who also want the extra body-control and convenience tweaks; they're not required to get a tune loaded.

Why the Bypass Alone Is Enough for 2019-2021

Once the bypass is installed correctly, EFI Live, HP Tuners, and EZ Lynk all write directly to the factory ECM. There's no separate decrypt step, no waiting on a vendor, and no downtime. This is the piece of advice that trips up a lot of owners: guides written around the newer, encrypted 2022+ ECM get applied to 2019-2021 trucks that don't need any of that, and owners end up quoted for (or shipping their ECM off for) a service they never needed.

Where Things Actually Go Wrong

The bypass install is a precision job, not a general fault-finding job. Most failures trace back to the install itself, not to a locked ECM:

  • Wrong pins: pins 6 and 14 need to be identified correctly before anything is pulled or swapped.
  • Insufficient twisting: the two new data wires need a consistent twist rate; skipping this invites EMI-related communication errors.
  • Wrong star-connector slot: plugging into the wrong open position won't establish the bypass path.
  • Forcing a write with the bypass only partially connected: this is the scenario that produces the classic "brick" symptoms: no communication on the OBD-II port, cascading fault codes, or a module stuck in a recovery state.

If the bypass is installed correctly, none of this is a concern. The risk here is a rushed or sloppy install, not a mandatory paid unlock step that got skipped.



2022-2024 Trucks: A Genuinely Different Process

If you landed on this guide but your truck is a 2022-2024 Ram Cummins, the SGW bypass above still applies, but it's no longer the whole story. Cummins and Bosch moved to a CM2450B ECM on these model years, protected by asymmetric (PKI/RSA) encryption that a bypass cable cannot defeat.

For that generation, the ECM genuinely does need to come out and go to a shop with bench-level flash access (HP Tuners and similar providers offer this as a paid "upgrade" or "unlock" service). Realistic pricing for that service runs roughly $1,499.99-$2,099.99, not the $150-$300 sometimes quoted for a generic "mail-in ECM unlock," and that figure doesn't include the tuning interface hardware or software credits needed to actually load a tune afterward. The truck is also off the road for the full shipping-plus-turnaround window, since running it on a spare ECM in the meantime isn't an option.

The takeaway: don't apply 2022-2024 pricing or process expectations to a 2019-2021 truck, and don't assume the simpler 2019-2021 bypass process will work on a 2022+ CM2450B ECM. They're not the same job.

Cost to Get Tuning-Ready: 2019-2021

Item Options Price Range
SGW Bypass Bypass cable $35-$100
SGW Bypass (full-feature) Tazer / Double Bypass $250-$350
Tuning Hardware EFI Live / HP Tuners / EZ Lynk interface $300-$800
Custom Tune Files Tuner-dependent $200-$800
Total (basic bypass + hardware + tune)   roughly $550-$1,700

After the Bypass: Compatible Platforms and Power Levels

Once the bypass is in and the tuner can communicate with the ECM, the truck is compatible with the major platforms: EFI Live, HP Tuners, and EZ Lynk in various configurations.

Typical power gains by tune level:

  • Tow tune (+15-30 hp): tuned for sustained load, EGT management, and transmission behavior rather than peak output.
  • Street tune (+30-100 hp): the daily-driver balance of throttle response and reliability.
  • Race / max-effort tune (+100-200+ hp): requires supporting hardware (injectors, fuel system, and head studs at the upper end) to hold up.

Beyond raw power, most owners notice quicker turbo spool, smoother shifts, and less lag around town.



Transmission Tuning: Newer Than You'd Think

Any meaningful power increase, generally north of 60 hp, puts real stress on the factory transmission calibration, and for Aisin AS69RC-equipped High Output trucks this used to be the one piece of the puzzle the aftermarket couldn't touch over OBD-II.

That changed only recently: HP Tuners cracked direct OBD-II access to the Aisin AS69RC's TCM controller in 2025/2026, becoming the first platform to offer it without alternate hardware. It opens up line-pressure increases, torque-converter lockup behavior, and shift-scheduling adjustments. That's genuinely useful if you're adding power, but it's worth knowing this is a capability that didn't exist for most of this truck's life, so double-check your platform and software version actually include it before assuming it's part of a standard tune package.

Warranty and Emissions: What Changed in 2026

ECM modifications, including a bypass and tune, can void factory powertrain warranty coverage, and dealerships can often see modification history in the ECM even after a truck is returned to stock.

On the emissions side, there's a real update worth knowing about. In January 2026, the Department of Justice's Environment and Natural Resources Division said it would stop pursuing criminal prosecutions under the Clean Air Act for tampering with emissions controls or OBD systems. That's a meaningful shift, but it isn't a green light: EPA civil enforcement is unaffected and continues. Civil penalties for tampering can still reach roughly $5,000 per violation for an individual, and state agencies (California's CARB in particular) enforce independently of federal policy.

Separately, EPA issued guidance in March 2026 allowing manufacturers and repair networks to remove failure-prone DEF quality sensors via authorized software updates rather than requiring them outright, and in July 2026 proposed eliminating DEF-related derate and speed-limiting penalties more broadly. Those changes are specifically about emissions-system sensors and derate logic, though. They don't change the legal status of physically deleting DPF, EGR, or SCR hardware, which remains restricted to off-road and closed-course use only under the Clean Air Act's civil provisions.

None of this affects the SGW bypass or ECM tuning covered in this guide directly. It's relevant if your build also touches emissions hardware, and it's worth understanding the actual current rules rather than outdated ones before making that call.

FAQ

Do I need an ECM unlock service for a 2019-2021 truck?

No. You need an SGW bypass. There's no separate encrypted-ECM step on this generation; that requirement is specific to 2022+ CM2450B trucks.

Can I tune a 2020 Ram Cummins without removing the ECM?

Yes, that's the normal path for this model year. The ECM stays in the truck; only the OBD-II bypass is needed.

How long does the process take?

A bypass cable install is typically a same-day DIY job or a quick shop visit. There's no shipping or lab turnaround involved for 2019-2021 trucks.

Can I return my truck to stock afterward?

Yes, most platforms let you reflash the original calibration file. The bypass cable itself can also be left in place or removed.

Will a dealer know the ECM was modified?

Possibly. ECM history can show prior modification even after a return to stock.

Conclusion

The 2019-2021 Ram 6.7L Cummins is more tuner-friendly than a lot of the advice around it suggests. Chrysler's SGW is real and it does need to be bypassed, but that's the entire unlock process for this generation: no mail-in encryption removal, no pulled ECM, no week(s) of downtime. Get the bypass installed correctly, and the truck is ready for the same mature tuning ecosystem, including transmission tuning as of the 2025/2026 platform updates, that owners of these trucks have had reliable access to for years.
