6.7 Powerstroke Oil Capacity by Model Year
While the 6.7 Powerstroke is widely known for having an oil capacity of around 13 quarts, the exact OIL CAPACITY OF A 6.7 depending on the model year, engine generation, and even the type of truck the engine is installed in.
Why 13 Quarts? The Importance of Correct Capacity Maintaining the full 13-quart volume is critical for more than just lubrication. A full crankcase ensures:
Optimal Cooling: A larger oil volume acts as a heat sink, allowing the oil cooler to stabilize temperatures during heavy towing. Stable Oil Pressure: Correct levels prevent oil aeration (foaming), ensuring consistent flow to the turbo and bearings. Soot Management: More oil means contaminants and soot from the EGR system are better diluted, extending engine life. Emission Support: Proper levels prevent excessive oil vapor from fouling the DPF and other sensitive emission components. Oil Capacity by Model Year (Super Duty) Most Ford F-Series Super Duty trucks share this service fill:
Model Year Generation Vehicle Models Oil Capacity (w/ Filter) Recommended Filter 2011–2016 Gen 1 F-250, F-350, F-450, F-550 13 Quarts Motorcraft FL-2051S 2017–2019 Gen 2 F-250, F-350, F-450, F-550 13 Quarts Motorcraft FL-2051S 2020–Present Gen 3 F-250, F-350, F-450, F-550 13 Quarts Motorcraft FL-2051S
Oil Capacity for Medium Duty Trucks (F-650, F-750) Medium-duty Ford trucks like the F-650 and F-750 also use the 6.7L diesel engine in certain configurations, but their oil capacity may differ slightly from Super Duty pickups.
Typically, these engines require 15 to 17 quarts. Always perform a "staged fill"—add 15 quarts, check the dipstick, and top off as necessary to reach the "Max" line.
Oil in A 6.7 Powerstroke: Service Fill VS Dry Fill It is important to distinguish between a routine oil change and a fresh engine build:
Service Fill (13 Quarts): This is what you do at every oil change. It accounts for the fact that a small amount of oil (roughly 1 quart) remains trapped in the oil cooler, lines, and engine crevices.Dry Fill (Approx. 14–15 Quarts): If the engine has been completely disassembled or replaced, you are starting with a "dry" system. In this case, you will likely need an additional 1 to 2 quarts to prime the system and fill the oil cooler for the first time.Recommended Oil Types and Specifications for Your 6.7 Powerstroke
Knowing the correct oil capacity is only part of proper maintenance for the 6.7 Powerstroke. Equally important is using the right type of oil that meets Ford’s specifications. Ford has established strict oil standards to ensure the 6.7L diesel engine remains protected in all operating conditions.
Understanding Ford's WSS-M2C171-F1 Specification Ford’s WSS-M2C171-F1 specification is essential for the 6.7 Powerstroke, addressing modern diesel engines with EGR and DPF systems. Oils meeting this standard control soot, prevent sludge, resist thermal breakdown, and reduce engine wear while being emissions-friendly. Using non-compliant oils can increase soot, degrade oil faster, and cause engine or emissions issues.

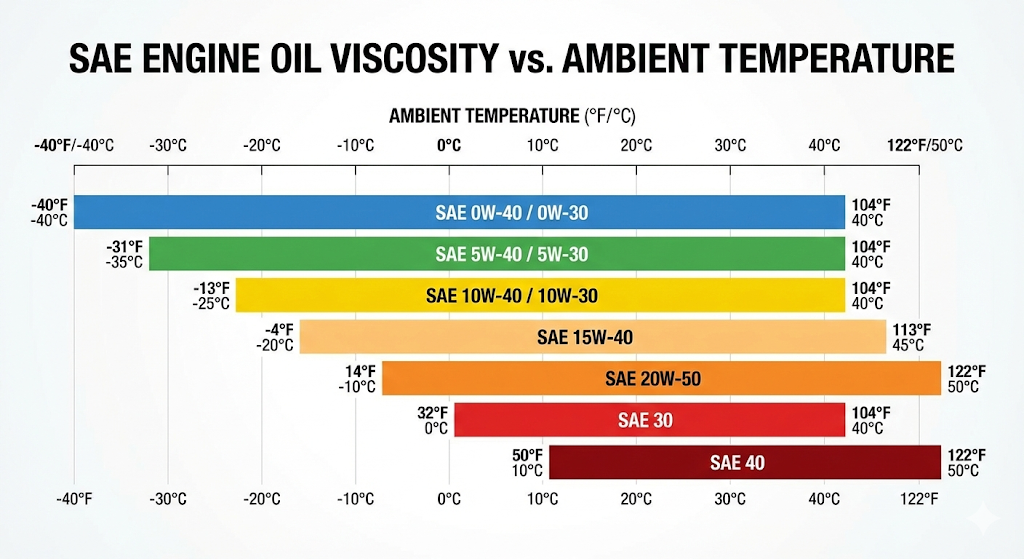

Recommended Motorcraft® Diesel Oils and Viscosities The most commonly recommended viscosities include:
Oil Viscosity Description Best For Pros Cons 10W-30 Motor Oil Standard factory-fill oil for most 6.7L Powerstroke engines Everyday driving, light-to-moderate towing, temperate climates Better fuel economy due to lower internal friction; flows quickly at startup Can thin out under extreme heat or maximum towing loads 15W-40 Oil Traditional “old reliable” diesel oil used for decades Constant heavy towing, high-mileage engines, consistently hot climates (e.g., Southwest US, summer hauling) Thicker oil film at high temperatures; excellent protection for main bearings under high-torque stress Much thicker when cold; slower cranking and delayed oil pressure in freezing temperatures 5W-40 Full Synthetic Diesel Motor Oil Considered the “gold standard” by many enthusiasts and fleet operators All conditions—sub-zero winter starts to extreme summer heat Excellent cold-start flow; strong high-temperature protection under heavy load; superior turbo protection Higher cost per gallon compared to conventional or synthetic-blend oils
6.7 Powerstroke Engine Oil Change
A proper DIY oil change ensures you hit the correct capacity and proper oil level.
Change the Oil: Tools You Need The correct amount of diesel engine oil Motorcraft® oil filter (FL-2051S) 15-Quart Minimum Drain Pan SOCKET/WRENCH, FUNNEL, GLOVES The "Pre-fill" Debate: To Fill or Not to Fill? One of the most common questions in the diesel community is whether you should fill the new oil filter with fresh oil before screwing it on.
Because the FL-2051S is massive, it holds nearly 2 quarts of oil. If you install it dry, there is a momentary "lag" in oil pressure when you first start the engine as the pump fills the filter.
Slowly pour about 1.5 quarts of your fresh oil into the center of the new filter. Let it soak into the pleats, then lubricate the rubber gasket with a dab of oil before installation. This ensures near-instant oil pressure on your first start.
Precise Refilling: Achieving the Correct Quarts Refilling is where many owners make mistakes—especially when working with an engine that takes over a dozen quarts. The best approach is to refill in a controlled way:
Start by adding slightly less than the full capacity (for example, 12 quarts if your engine takes 13). Let the oil settle for a minute. Check the dipstick. Add oil gradually until you reach the correct level. After refilling, start the engine and let it idle for 30–60 seconds. This circulates oil through the filter and oil cooler. Shut the engine off, wait a few minutes, and check the dipstick again. You may need to add a small amount to reach the proper level after the filter fills.
Oil Level: How to Check Oil in a 6.7L Powerstroke Reading the oil level on a 6.7L Powerstroke is notoriously frustrating. The engine uses a long, flexible wire-style dipstick that often picks up "ghost" oil from the sides of the dipstick tube, leading to false high readings.
How to get an accurate reading:
The 20-Minute Rule: After shutting off the engine, you must wait at least 20 minutes (preferably longer) before checking. This allows the 13 quarts of oil held in the upper galleries and turbo lines to drain back into the pan.The "Slow Pull" Technique: Pull the dipstick out, wipe it completely clean, and re-insert it.Read Both Sides: Pull it out again and look at both sides of the plastic tip. The lowest consistent line of oil across the "crosshatch" area is your true level.Avoid the "Smear": If the oil looks streaky or is only on the edges of the wire, ignore it. You are looking for a solid "block" of oil covering the crosshatch.
VIDEO
How Often Should You Change the Oil? Oil change intervals depend on how the vehicle is driven, the type of oil used, and operating conditions. For diesel engines like the 6.7L Powerstroke, oil changes are especially important because of soot, heat, and heavy-load operation.
General oil change guidelines:
Normal driving (mostly highway, light loads): Severe duty use (towing, idling, stop-and-go driving, short trips, extreme heat or cold): Heavy commercial or fleet use: Oil type matters:
Full synthetic diesel oil can safely run longer intervals than conventional oil. Always use oil that meets Ford WSS-M2C171-F1 specifications to properly manage soot and protect emissions components. Best practice:
FAQs
How many quarts of oil does a 6.7 powerstroke take? Most 6.7L Powerstroke diesel engines take 13 quarts (12.3 liters) of engine oil when doing a full oil and filter change.
(Always double-check your owner’s manual for your exact model year.)
What oil is recommended for a 6.7 powerstroke? Ford typically recommends a full synthetic diesel-rated oil that meets the proper Ford diesel specifications.
For most modern 6.7 Powerstroke trucks, the most commonly recommended viscosity is 10W-30, especially for normal driving and colder climates.
Should i use 10w-30 or 15w-40 in my 6.7 powerstroke? In most cases:
10W-30 is best for daily driving, cold starts, and fuel economy 15W-40 is often used in hot climates, heavy towing, or high-mileage engines If you drive in cold weather regularly, 10W-30 is usually the better choice.
Can i use 15w-40 in my 6.7 powerstroke? Yes, 15W-40 can be used in many 6.7 Powerstroke engines, especially in warmer temperatures.
However, it may not perform as well during cold starts in winter, and some newer model years are optimized for 10W-30.
Conclusion
Understanding the correct oil capacity and oil requirements for the 6.7L Powerstroke is essential to maintaining the engine’s reliability, performance, and long service life.
By following the guidelines outlined in this article, owners can avoid common mistakes, reduce unnecessary wear, and ensure their 6.7 Powerstroke continues to deliver the durability and towing performance.
