How the DPF Works on the 6.7 Powerstroke
The Diesel Particulate Filter (DPF) is a ceramic honeycomb-style filter mounted in the exhaust stream, downstream of the DOC (diesel oxidation catalyst) and upstream of the SCR. Its job is simple on paper: trap soot particles before they leave the tailpipe. In practice, it's anything but simple.
As you drive, soot loads into the DPF. Once the ECM sees enough backpressure across the filter, it commands a regeneration cycle. Passive regen happens at highway temperatures. Active regen injects extra fuel post-combustion to spike exhaust gas temperatures (EGTs) to around 1000–1200°F, burning the trapped soot into ash.
That post-injection strategy is where most of the 6.7's DPF problems begin.
The Most Common 6.7L DPF Problems
Frequent or Incomplete Regen Cycles
Short-trip drivers are the hardest hit. City driving, idling at job sites, and cold starts never let EGTs climb high enough to complete a regen. The truck tries, fails, and tries again, sometimes every 100 miles instead of every 500–700. You'll feel it: sudden fuel economy drops, hot exhaust smell, cooling fans running hard at idle.
DPF Clogging — P2002, P2463, P242F
These three codes are the 6.7 owner's trifecta of bad news:
- P2002 — DPF efficiency below threshold
- P2463 — Diesel Particulate Filter Restriction / Soot Accumulation
- P242F — DPF Restriction — Ash Accumulation
P242F is the one that hurts the most. Ash doesn't burn off. Once the filter is ash-loaded, no amount of regen will save it. At that point, you're looking at a cleaning service or full replacement.

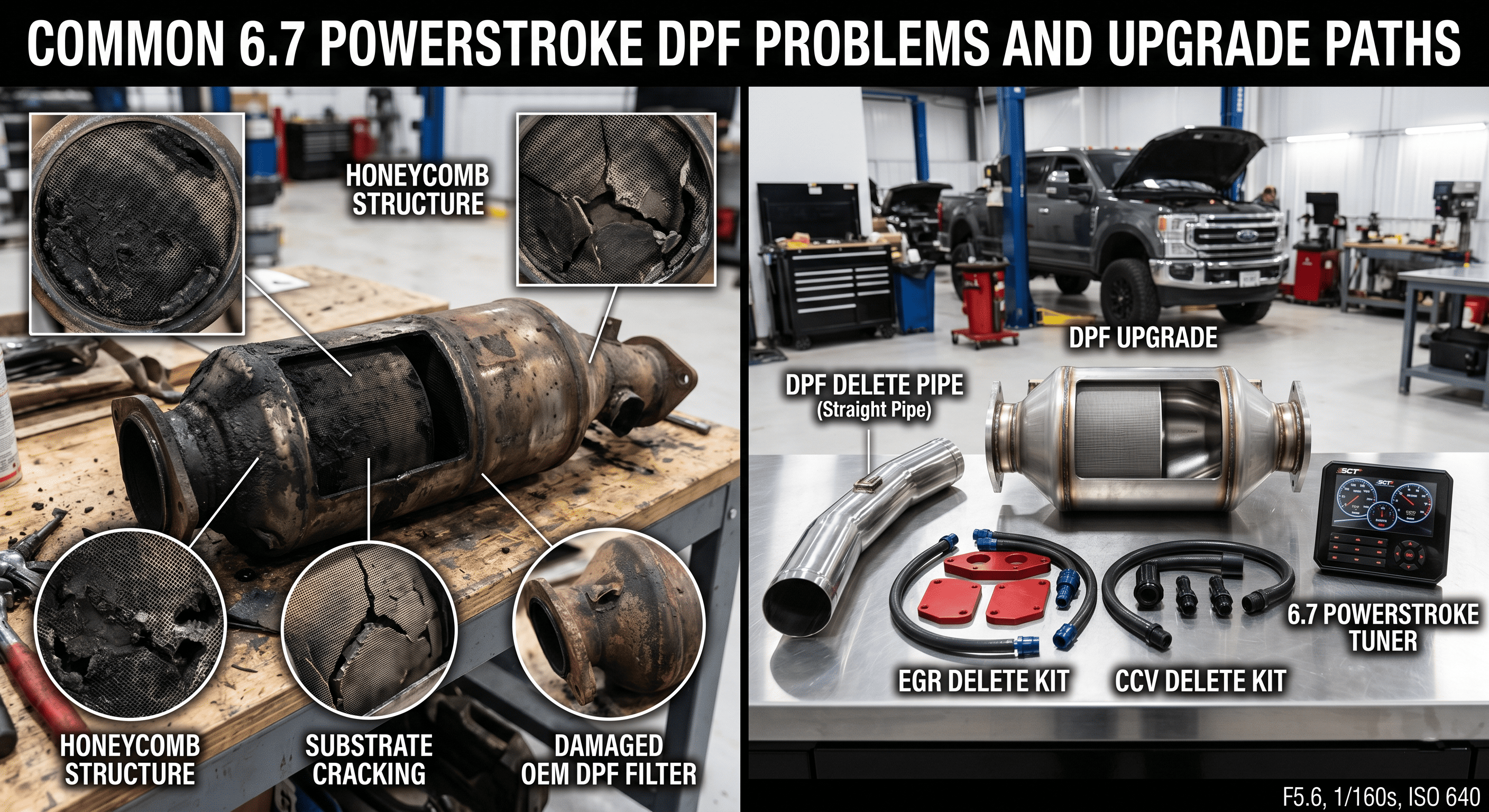

Cracked DPF Substrate from Thermal Stress
Repeated active regens hammer the ceramic substrate with thermal cycles. Crack the honeycomb and soot slips through unfiltered, sensors read incorrect pressure values, and you'll throw codes that don't match what's actually wrong. Cracked DPFs are especially common on 2011–2016 trucks that have crossed 150K miles.
Oil Dilution from Post-Injection Regen
This one's a sleeper problem and arguably the most expensive. During active regen, the 6.7 injects diesel late in the power stroke to raise EGTs. Some of that unburned fuel washes past the rings and ends up in the oil pan. Owners doing frequent short trips have pulled dipsticks reading two quarts over full with diesel. Diluted oil loses viscosity, and that's how high-pressure fuel pumps, turbos, and bearings get killed.
Limp Mode and Reduced Power
When the ECM decides the DPF is too restricted, or a regen has failed too many times in a row, the truck drops into limp mode. Boost is cut, throttle is capped, and you're towing a trailer at 45 mph on the shoulder of I-70. This is the 6.7's built-in "drive it to the dealer" mode, and it's not optional without intervention.
How to Diagnose a DPF Issue
Before throwing parts at the truck, confirm the failure:
- Scan for codes. A cheap OBD-II reader won't always pull manufacturer-specific DPF codes. Use a Ford-capable tool (Forscan, a decent bidirectional scanner, or a quality tuner) to see pressure values live.
- Read the DPF differential pressure sensor. At idle, a healthy DPF reads around 0.1–0.3 psi. Anything above 1.0 psi at idle means restriction.
- Check regen frequency and duration. Forscan can show you the last regen distance and soot mass. Regens every 100–150 miles indicate a problem.
- Visual inspection. Pull the DPF and look for cracked honeycomb, oil contamination (black, wet soot vs. dry powder ash), or melted substrate.
- Check the oil. Pull the dipstick, smell it. Diesel-diluted oil has a sharp fuel smell and reads high on the stick.
Repair and Upgrade Options
Once you've confirmed the failure, you've got four real paths forward.
Forced Regen — A Temporary Fix
A shop or tuner can command a forced regen, which holds the truck at high EGT until the soot burns off. This works if the DPF is just soot-loaded, not ash-loaded or cracked. Cost: $100–$200 at a shop, free if you own a capable scanner. It's a band-aid, not a fix. If the driving pattern hasn't changed, you'll be back in a month.
Professional DPF Cleaning
Specialty shops bake and pneumatically clean DPFs for $200–$500. This resets ash loading and buys you another 100K miles if the substrate isn't cracked. Good option for fleet trucks that need to stay emissions-compliant.
OEM DPF Replacement
A new Motorcraft DPF runs $1,500–$3,000 installed, depending on year. It restores factory function, along with every factory problem that came with it. If you're planning to keep the truck stock for emissions reasons (California, some East Coast counties, fleet contracts), this is your path.
DPF Delete Kit — Off-Road Permanent Fix
For off-road, race, and competition trucks where emissions rules don't apply, a full delete kit removes the DPF, DOC, and usually the EGR and CCV as part of the package. Paired with a custom tune, this eliminates every failure mode on the list above: no regen, no oil dilution, no limp mode, no $3,000 filter replacement every 150K miles.
EngineGo carries complete kits broken out by year and part:
- Delete Pipe — the exhaust piece itself, for builders sourcing parts individually
- Delete Kit — DPF + EGR + CCV bundled
- Tuner — required to disable regen logic and prevent codes after delete
- EGR Delete Kit — addresses the clogging problem upstream of the DPF
- CCV Delete Kit — keeps oil mist out of the intake tract
Year matters, as these trucks split cleanly into two platforms. If you're on a 2011–2019 model, start with the 2011–2019 Platform Guide. For 2020 and newer, use the 2020–2024 Platform Guide because the later trucks have different sensor layouts and tuning requirements.
Why Delete Is the Preferred Upgrade Path for Off-Road Builds
For trucks that legally qualify (off-road, race, closed-course, competition use), a full delete does what cleaning and replacement can't: it permanently eliminates the root cause. No post-injection cycle means no oil dilution. No regen means no thermal cycling and no cracked substrates. No DPF means no P2002, no P2463, no P242F. Fuel economy typically recovers 2–4 mpg. EGTs drop. The truck stops dropping into limp mode on a grade with a loaded trailer.
FAQs
Will a DPF delete void my Ford warranty?
If you're still inside the factory powertrain warranty, yes — anything emissions-related is voided once the hardware is removed. Delete kits are sold for off-road use only.
How much horsepower does a DPF delete add on its own?
By itself, 10–20 hp and better throttle response. The real gains come from pairing it with a quality tuner — most 6.7 owners see 60–120 hp on a conservative tune.
Can I just remove the DPF and leave the tune stock?
No. The ECM will throw codes immediately, and you'll be in limp mode within a drive cycle. A delete tune is not optional.
My truck regens every 150 miles. Is the DPF done?
Not necessarily. Check for a failed EGR cooler, a stuck DPF pressure sensor, or short-trip driving patterns first. A clogged EGR dumps soot into the DPF fast and will wreck a new filter just as fast as an old one.
What's the total cost of a full delete vs. a new OEM DPF?
A complete delete kit with tuner typically runs $1,100–$1,800. A new OEM DPF alone runs $1,500–$3,000 installed and doesn't address the EGR, CCV, or oil dilution issues that will come back.
